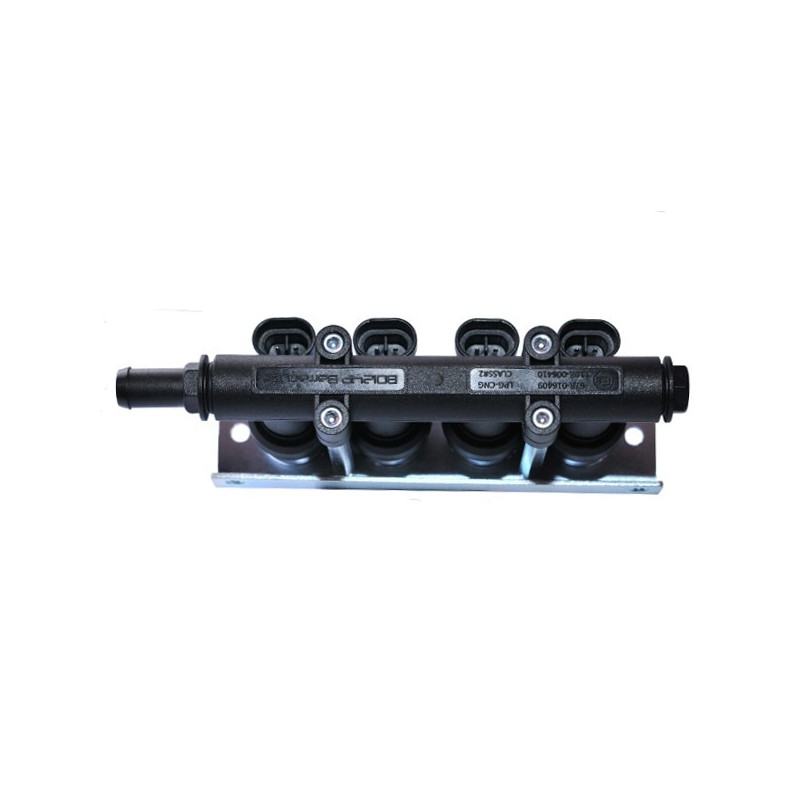

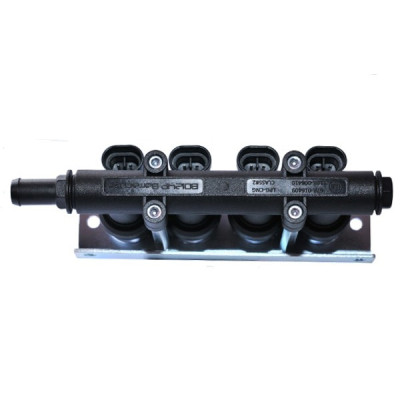

Injection rail BARRACUDA 4cyl.
BARRACUDA 115 - 4cyl. Injection rail
    Injection rail BARRACUDA 4cyl.
    BARRACUDA 115 - 4cyl. Injection rail

BARRACUDA 120 - 4cyl. Injection rail

zł320.00
Tax included

Coil resistance - 1.9 Ω ,  Max Flow Rate - 115Nl/min-1.2bar

Product Reference: 56-115
Quantity
Add to wishlist

Injection rail BARRACUDA 4cyl.



Approval:

(E8)67R016407
(E8)110R006408



- Max Flow Rate - 120Nl/min-1.0bar
- Coil resistance - 1.9 Ω
- Operating temperature - 20 ° C to +120 ° C
- Opening time - 1.8 ms
- Closing Time - 1.2 ms
- Maximum supply pressure - 4.5 bar
- Lifetime - more than 500 million cycles
- The length of stubs - 93mm
- Body diameter - 28mm Φ
- Width of the connector body - 38mm
- The gas inlet nozzle diameter - 6mm
- Diameter of the nozzle exit: gas - 12 mm
- Gas nozzle - 1.5mm (possibly in exchange calibration)





56-115

Data sheet

Homologation number
E8-67R-016407; E8-110R-006408
COD.
C032-04-20-00-01
Warranty
24 months
Coil Resistance
1,9 ± 5% Ω
Opening time
1,8 ms
Closing time
1,2 ms
New
