Adapter for injectror Hana/Barracuda/Hercules/Dymco
Barracuda 120nl - 1cyl. injector
zł80.00
Tax included
Coil resistance - 1.9 Ω
Product Reference: 53-59

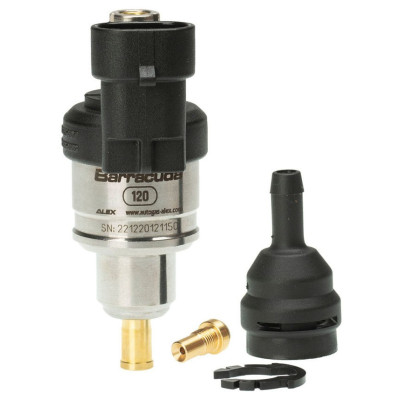

Barracuda Injector (120nl/min)
Barracuda is a piston injector design with vertical gas supply. Flow control is helpful, calibration nozzles - just drill the right size jets, and therefore there is no need to choose between several models.
Barracuda is standard with connection allowing it to be used as a single injector with the distributors. The universal mounting solution injector - after removing the top of the plastic cap from the nozzle, it can be installed in a special bus teaming.
- Coil resistance - 1.9 Ω
- Operating temperature - 20 ° C to +120 ° C
- Opening time - 1.8 ms
- Closing time - 1.2 ms
- Lifetime - more than 500 million cycles
- Length - 93mm
- Body diameter - Φ 28mm
- Inlet gas - 6mm
- Departure: Gas - 6 mm
53-59
Data sheet
- Homologation number
- E8-67R-016407; E8-110R-006408
- COD.
- C027-20-19-00-01
- Warranty
- 24 months
