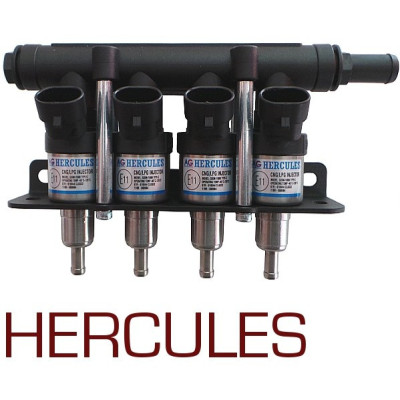

Injection rail HERCULES I-1000 for 4cylinders
Approval:
E11 67R010044
E11 110R-000064
- Resistance of the coil - 1,7 Ω
- Operating temperature - 20 ° C to + 120 ° C
- The opening time - 2.5 ms
- Closing time - 0.8 ms
- The maximum supply pressure - 4.5 bar
- A gas inlet - 12mm
- Outlet: gas - 6mm
Expenditure screwed adjustable nozzles.
Selection of injectors Hercules, depending on engine power:
nozzle 1.9mm - max. 20KM / cyl.
nozzle 2.1mm - 17-27KM / cyl.
nozzle 2.4mm - 24-36KM / cyl.
without nozzle - 33-47KM / cyl.
Coil resistance: 2.5Ohm
cod.238095000, before: green version
Injection rail HERCULES BLUE for 4cylinders
Valtek 3ohm injection rail 2cyl.
Original Vercesi 5.0 with a orange cap. Compatible with Bosch 12185025 plug.
72-80HP/cyl. (16,32)
33-50 HP / cyl. [ with the possibility of use of the nozzle. ] - Coil resistance - 1.9 Ω
- Coil resistance - 1.9 Ω . SM - aluminum body
cod.23809000
Valtek 3ohm BFC injection rail for 3 cylinders
