Adapter for injectror Hana/Barracuda/Hercules/Dymco

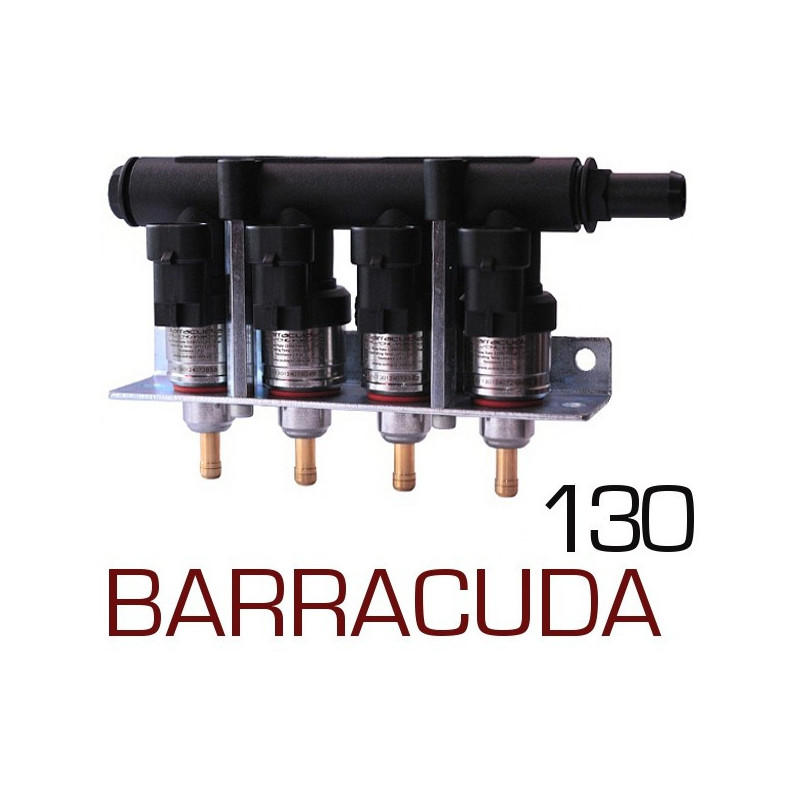

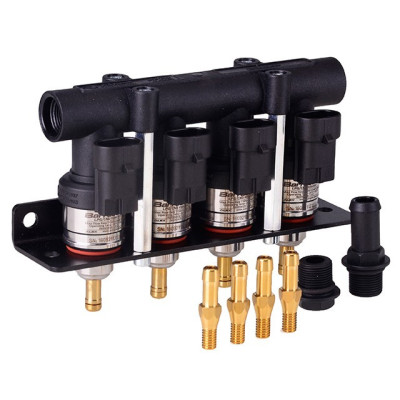

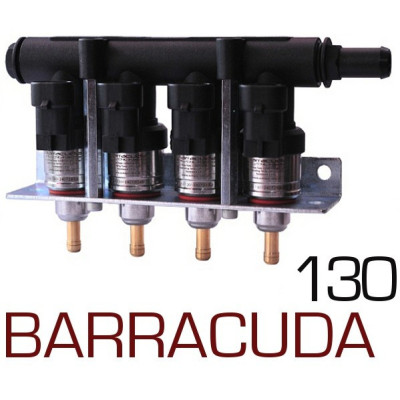

BARRACUDA 130 - 4cyl. Injection rail
zł380.00
Tax included
Coil resistance - 1.9 Ω , Max Flow Rate - 130nl/min-1.2bar
Product Reference: 56-130
Injection rail BARRACUDA 4cyl. 130nl
Approval:
(E8)67R016407
(E8)110R006408
- Max Flow Rate - 130nl/min-1.2bar
- Coil resistance - 1.9 Ω
- Operating temperature - 20 ° C to +120 ° C
- Opening time - 1.9 ms
- Closing Time - 1.2 ms
- Maximum supply pressure - 4.5 bar
- Lifetime - more than 500 million cycles
- The length of stubs - 93mm
- Body diameter - 28mm Φ
- Width of the connector body - 38mm
- The gas inlet nozzle diameter - 6mm
- Diameter of the nozzle exit: gas - 6 mm
- Gas nozzle - 1.5mm (possibly in exchange calibration)
56-130
New
