Max Flow Rate - 130nl/min-1.2bar
Approval:
(E8)67R016407
(E8)110R006408
- Max Flow Rate - 130nl/min-1.2bar
- Coil resistance - 1.9 Ω
- Operating temperature - 20 ° C to +120 ° C
- Opening time - 1.9 ms
- Closing Time - 1.2 ms
- Maximum supply pressure - 4.5 bar
- Lifetime - more than 500 million cycles
- The gas inlet nozzle diameter - 6mm
- Diameter of the nozzle exit: gas - 6 mm
- Gas nozzle - 1.5mm (possibly in exchange calibration)
Data sheet
Performance adjustable by nozzles. Coil Resistance - 1.9 Ω
Original Vercesi 4.0 first generation injector with a black cap. Compatible with Bosch 12185025 plug.
24-42,5kW / 1cyl. WGM2471AH
Coil resistance - 1.9 Ω , Max Flow Rate - 130nl/min-1.2bar

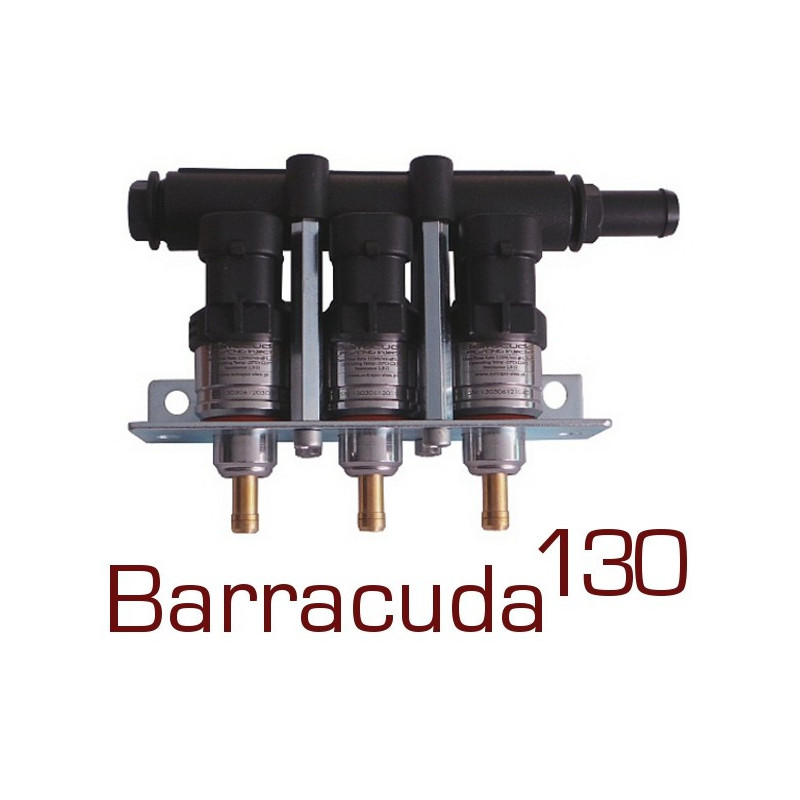

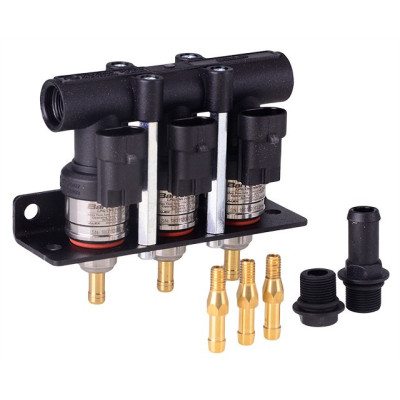

Valtek 3ohm BFC injection rail for 3 cylinders
Flow Rate - 130L/min
72-80HP/cyl. (16,32)
Original Vercesi 4.0 with a green cap. Compatible with Bosch 12185025 plug.
Injection rail HERCULES BLUE for 4cylinders
BRC 4cyl. original
Max. flow rate 140L/min
