TARTARINI EVO 08

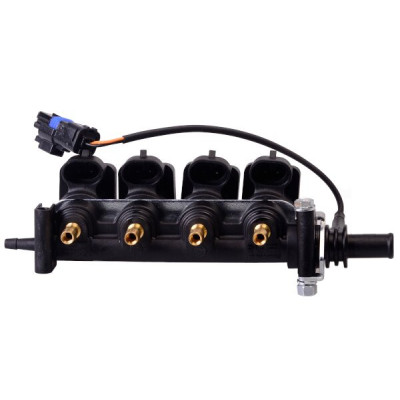

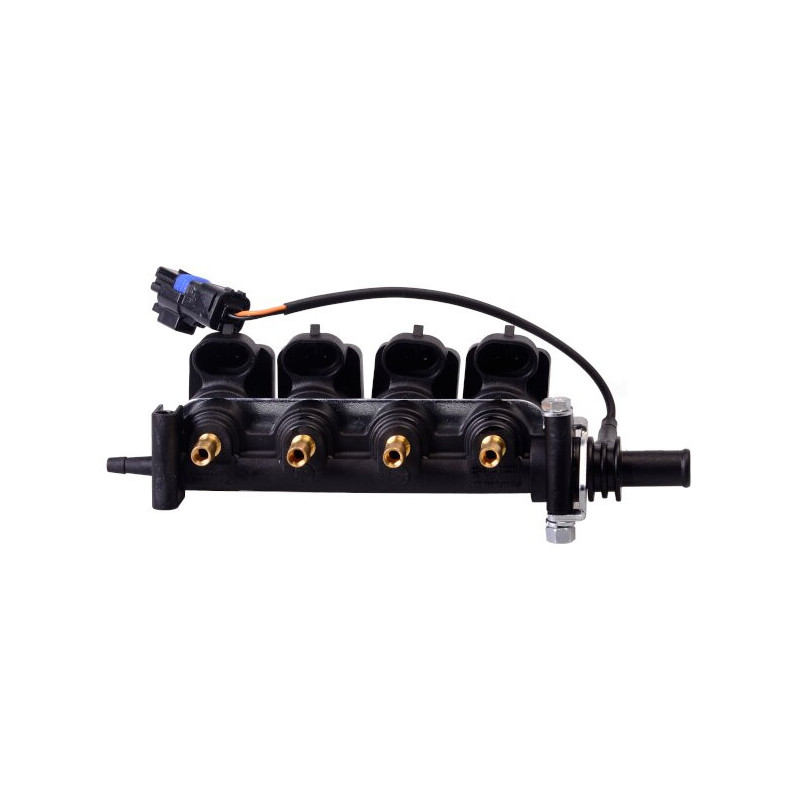

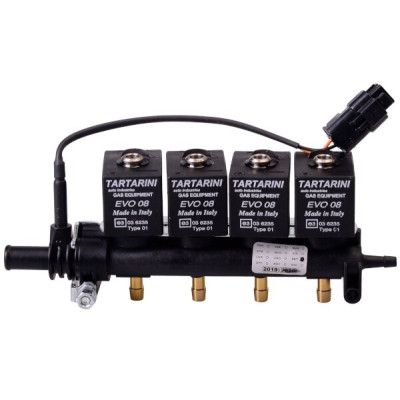

Original Tartarini EVO 08 black injection rail with temperature sensor.
Application:
The injector is responsible for the precise dosing of the vaporized LPG gas to each engine cylinder.
The rail is designed for automotive LPG sequential injection systems. It can be fitted with four and eight cylinder engines.
It is recommended to install the rail in a vertical position, as close as possible to the engine inlet manifold, using hoses of equal length. The shorter the distance of gas injection from the petrol injectors, the higher the dynamics of driving on LPG.
Technical data:
Approval: E13 110R-000117
Plug: Superseal (as in Valtek)
Capacity: 45-100kW / 61-135KM (for Turbo 48-90kW / 65-122KM)
Manufacturer's code: 8950958
Included: Tartarini EVO08 4 cylinder injection rail: x 1
Warranty: 1 year from the date of purchase.
Coil resistance - 1.9 Ω, Flow rate - 65-115 L/min
4x injector 09SQ99020061
BRC 4cyl. original
Without nozzles.
Coil resistance - 1.3 Ω
Resistance 1.9 Ohm
Coil resistance - 1.9 Ω , Max Flow Rate - 115Nl/min-1.2bar
cod.238000131
Injection rail HERCULES I-1000 for 4cylinders
Coil resistance - 1.3 Ω
