AC W031-4 BFC + elbows PS / option 2
zł280.00
Tax included
24-42,5kW / 1cyl. WGM2471AH
Product Reference: 54-74

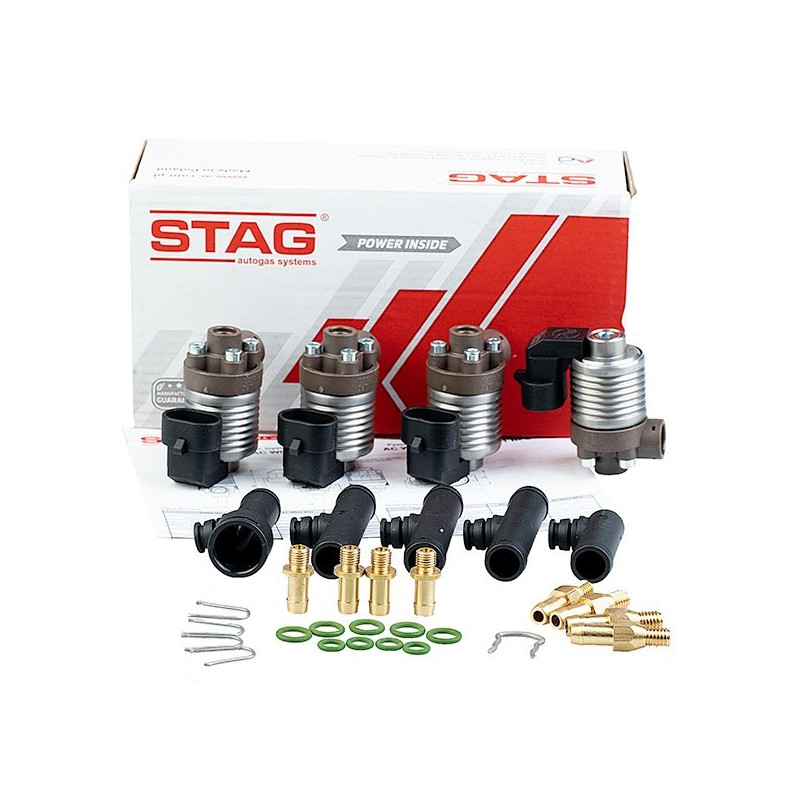

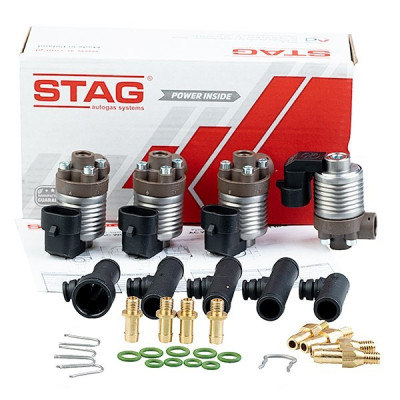

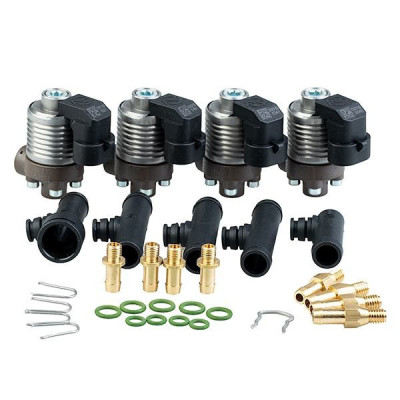

Injection rail AC W031-4 BFC
Approval: E8 67R-01 7294
Working pressure - 0,95-1,5 bar
Maximum operating pressure - 4.5 bar
Temperature - 20 ° C to 120 ° C
Injector opening time (at a pressure of 1,2 bar) - 2.3 ms
Closing time injectors (at a pressure of 1,2 bar) - 1.3 ms
Capacity range - 24-42,5kW / cylinder (adjustable nozzle)
Resistance - 1,9 Ohm
Max. flow (at a pressure of 1,2 bar) - 145l/min
Gas outlet - 6mm
