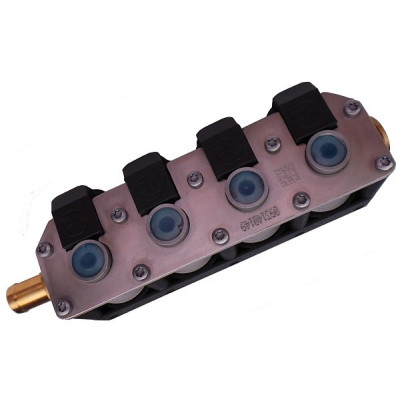

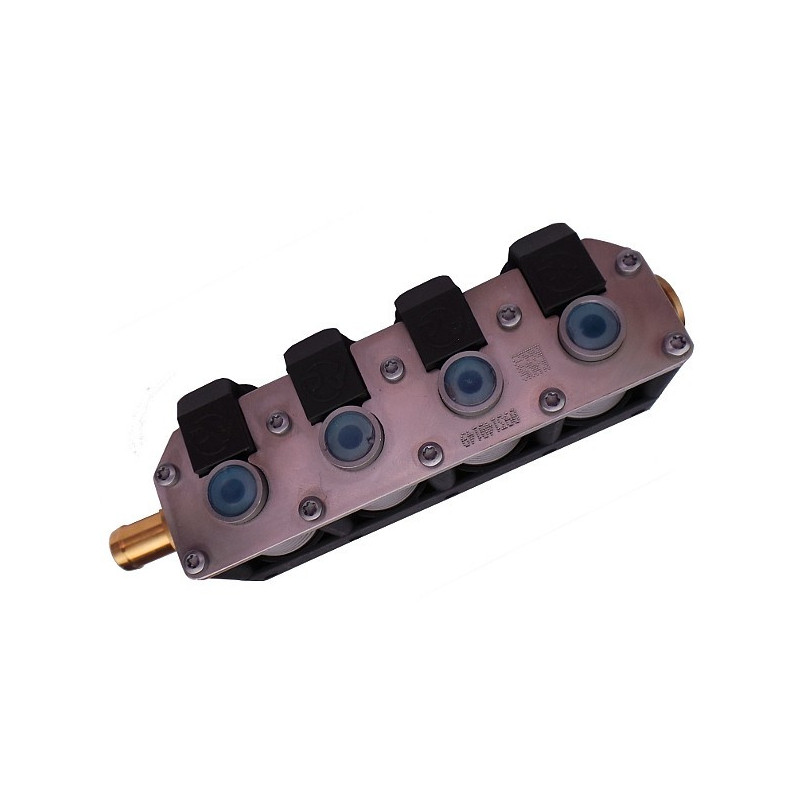

AC W02-4 Injection rail
zł289.00
Tax included
11-31kW / cylinder
Product Reference: 56-60
Injection rail AC W02-4
Approval:
E20 67R-017064
110R-007065
Working pressure - 0,95-1,2 bar
Maximum operating pressure - 4.5 bar
Temperature - 20 ° C to 120 ° C
Injector opening time (at a pressure of 1.2 bar) - 2 ms
Closing time injectors (at a pressure of 1.2 bar) - 1 ms
Capacity range - 11-31kW / cylinder (adjustable nozzle)
Weight - 0.41 kg
Resistance - 1.9 Ohm
Max. flow (at a pressure of 1.2 bar) - 120l/min
Width - 145 mm
Height - 53 mm
The height of the nozzle - 60 mm
2 years warranty
