Injection rail HANA 2001 A - GREEN 4cyl.
    Injection rail HANA 2001 A - GREEN 4cyl.

HANA 2001 GOLD 4cyl. Injection rail

zł350.00
Tax included

Coil resistance - 1.9 Ω

Product Reference: 47-02
Quantity
Add to wishlist

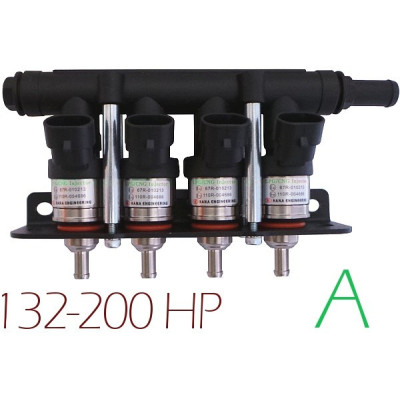

Injection rail HANA 2001 A - GOLD for 4cylinders



Approval:
(E4) 67R010213
(E8) 110R-004686


- Coil resistance - 1.9 Ω
- Operating temperature - 20 ° C to +120 ° C
- Opening time - 2.0 ms
- Closing time - 1.2 ms
- Injection time - 2.9 ms
- Maximum supply pressure - 4.5 bar
- Life - over 500 million cycles
- Body diameter - 28mm Φ
- The width of the body of the plug - 38mm
- Length - 72cm
- Inlet gas - 6mm
- Departure: Gas - 6 mm



Selection of Hana injectors depending on engine power:



Type / Color A +   Gold  Gold + 2.4 nozzle  Gold + 2.1 nozzle
Yield HP / on one cylinder at a pressure of 0.8 bar
(At maximum load) 		 40HP  33HP  26HP 20HP
Yield HP / on one cylinder at a pressure of 1.0 bar
(At maximum load) 		 50HP 40HP  32HP  25HP
Yield HP / on one cylinder at a pressure of 1.2 bar
(At maximum load) 		 60HP  50HP 39HP 30HP
The 4-cylinder engine with a capacity of:  160 ~ 240 HP  132 ~ 200 HP  104 ~ 156 HP   80 ~ 120 HP
 The 6-cylinder engine with a capacity of: 240 ~ 360 HP  198 ~ 300 HP   156 ~ 234 HP 120 ~ 180 HP
 The 8-cylinder engine with a capacity of:  320 ~ 480 HP  264 ~ 400 HP 208 ~ 312 HP  160 ~ 240 HP

HANA ENG.
47-02
New
