15-40kW / cylinder

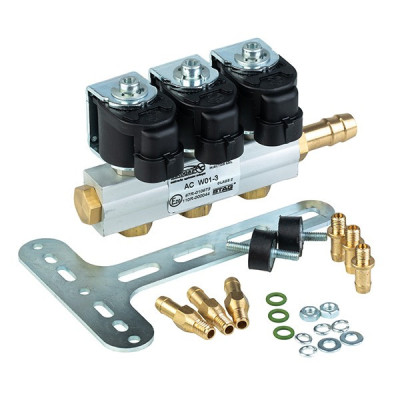

Injection rail AC W01-3 BFC
Approval:
E20 67R-010973
110R-000044
Working pressure - 0,95-1,2 bar
Maximum operating pressure - 4.5 bar
Temperature - 20 ° C to 120 ° C
Injector opening time (at a pressure of 1 bar) - <2.4 ms
Closing time injectors (at a pressure of 1 bar) - <1.7 ms
Capacity range - 15-40kW / cylinder (adjustable nozzle)
Weight - 0.40 kg
Resistance - 2ohms
Max. flow (at a pressure of 1 bar) - 120l/min
Width - 122 mm
Height - 54 mm
The height of the nozzle - 84 mm
Output nozzle diameter - 4.6 mm
Inlet nozzle diameter - 10.5 mm
40-60 HP / cyl.
Resistance: 3ohm. Cod:238639000
18-27 kW
Valtek 3ohm injection rail 2cyl.
4x injector 09SQ99020061
Performance adjustable by nozzles. Coil Resistance - 1.9 Ω
- Coil resistance - 1.9 Ω . SM - aluminum body
Coil resistance - 1.9 Ω , Max Flow Rate - 130nl/min-1.2bar
Resistance 1.9 Ohm. Max. gas flow: 115 l / min
Max Flow Rate - 130nl/min-1.2bar
