Max. gas flow:140l/min. Performance adjustable by nozzles. Coil resistance - 1.9 Ω
Max. flow rate 140L/min
Approval
E8 67R-018502
110R-018503
Coil Resistance - 1.9 Ω
Opening time - 2,0ms
Closing time - 1,2ms
Max. gas pressure - 4,5 Bar
Max. Gas flow - 140 l / min
Operating temperature - 40 ° C - + 120 ° C
Included:

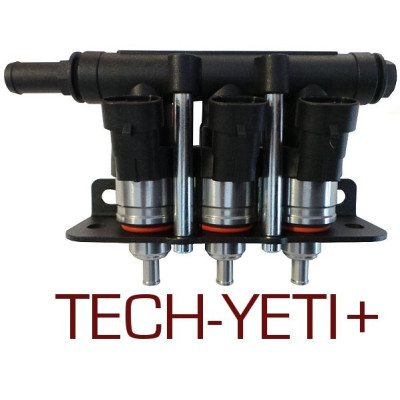

Injection rail 3cyl - 1x
Nozzles - 3x
Collector nozzles - 3x
Max. gas flow:140l/min. Performance adjustable by nozzles. Coil resistance - 1.9 Ω
GI25-22. For power: < 20 kW
Coil resistance - 2.0 Ω, Maximum flow value - 120Nl / min
62-70HP/cyl. (16,32)
Flow regulated by nozzles 60,75,90 L/min or without nozzle 115 L / min
Coil resistance - 1.9 Ω , Max Flow Rate - 115Nl/min-1.2bar
