Availability: 73 In Stock
Resistance 1.9 Ohm. Max. gas flow: 115 l / min

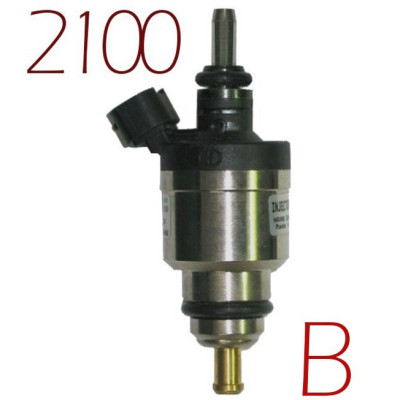

HANA 2100 B-RED 1cyl. Injector with ferrule
zł160.00
Tax included
62-70HP/cyl. (16,32)
Product Reference: 31-96
Injector HANA H2100 type B
Approval:
E8 110R-004686
- Coil resistance - 1.4 Ω
- Operating temperature - 20 ° C to +120 ° C
- Opening time - 2.8 ms
- Closing time - 1.2 ms
- Maximum supply pressure - 3.5 bar
- Life - over 500 million cycles
- Flow Rate - 200 L/min
Selection of HANA H2100 injectors depending on engine power:
| Type / Color | A | B |
| Yield HP / on one cylinder at a pressure of 1.2 bar (At maximum load) |
72HP | 62HP |
| Yield HP / on one cylinder at a pressure of 1.5 bar (At maximum load) |
80HP | 70HP |
| The 4-cylinder engine with a capacity of: | 288 ~ 320 HP | 248 ~ 280 HP |
| The 6-cylinder engine with a capacity of: | 432 ~ 480 HP | 372 ~ 420 HP |
| The 8-cylinder engine with a capacity of: | 576 ~ 640 HP | 496 ~ 560 HP |
