Availability: 10 In Stock
Coil resistance - 1.9 Ω , Max Flow Rate - 130nl/min-1.2bar

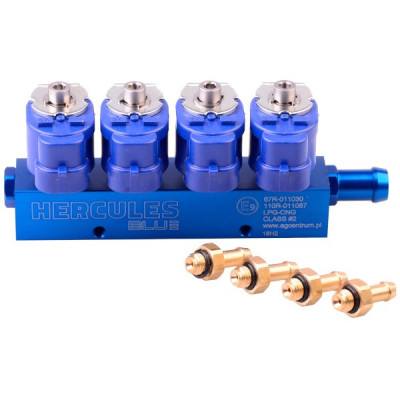

Injection rail Hercules BLUE 4cyl.
zł205.00
Tax included
Injection rail HERCULES BLUE for 4cylinders
Product Reference: 15-61
HERCULES BLUE for 4cyl.
Technical specification:
- Fuel type LPG/CNG
- Coil resistance: 2 Ω
- Min. opening time: 2,4 ms
- Efficiency up to 50 HP / cyl
- Permissible working pressure: 0.5 - 2.5 bar
- Maximum operating pressure: 4,5 bar
- Power supply voltage DC 6V - 18V
- Operating temperature: -20 do +120 st. C
- AMP connector 282104-1 (Valtek type),
- Current control: Peak & Hold
- Approvals 67R-01 and 110R-00
Choosing Hercules Blue you gain:
- 100% airtight injection rail ( confirmed by tests )
- Excellent efficiency even with low quality gaseous fuel
- Ease of maintenance and perfectly silent operation
- Outstanding timing parameters
- Factory calibrated piston stroke
- Rubber sealed piston with anti- friction coating
- Fuel consumption regulated by screw-in nozzles (1,5-3,0 mm)
source: agcentrum.pl
Nozzle 1,9: up to 20 HP/1cyl.
Nozzle 2,1: up tp 27 HP/1cyl.
Nozzle 2,4: up to 36 HP/1cyl.
Nozzle 3,0: up to 50 HP/1cyl.
15-61
