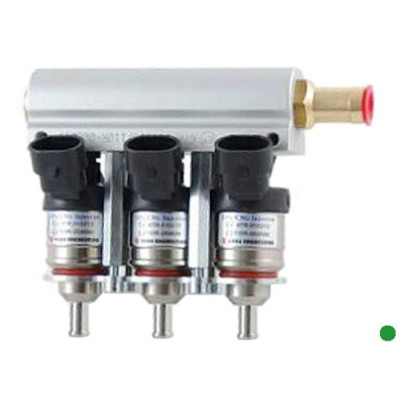

Injection rail metal HANA 2001 A GREEN 3cyl.
    Injection rail metal HANA 2001 A GREEN 3cyl.

HANA 2001 A GOLD 3cyl. Injection rail ALU

zł280.00
Tax included

Flow regulated by nozzles 60,75,90 L/min or without nozzle 115 L / min

Product Reference: 47-00A
Quantity
Add to wishlist

Injection rail HANA 2001 GOLD  for 3cyl.

Approval:
(E4)67R016218
(E8)110R-006219


- Coil resistance - 1.9 Ω
- Operating temperature - 20 ° C to +120 ° C
- Opening time - 2.0 ms
- Closing time - 1.2 ms
- Injection time - 2.9 ms
- Maximum supply pressure - 4.5 bar
- Life - over 500 million cycles

Flow regulated by nozzles:
1.9 nozzle: 60L / min
2.1 nozzle: 75L / min
2.4 nozzle: 90L / min
without nozzle: 115L / min




Selection of Hana injectors depending on engine power:





Type / Color A +   A  B  C
Yield HP / on one cylinder at a pressure of 0.8 bar
(At maximum load) 		 40HP  33HP  26HP 20HP
Yield HP / on one cylinder at a pressure of 1.0 bar
(At maximum load) 		 50HP 40HP  32HP  25HP
Yield HP / on one cylinder at a pressure of 1.2 bar
(At maximum load) 		 60HP  50HP 39HP 30HP
The 4-cylinder engine with a capacity of:  160 ~ 240 HP  132 ~ 200 HP  104 ~ 156 HP   80 ~ 120 HP
 The 6-cylinder engine with a capacity of: 240 ~ 360 HP  198 ~ 300 HP   156 ~ 234 HP 120 ~ 180 HP
 The 8-cylinder engine with a capacity of:  320 ~ 480 HP  264 ~ 400 HP 208 ~ 312 HP  160 ~ 240 HP
HANA ENG.
47-00A
New
