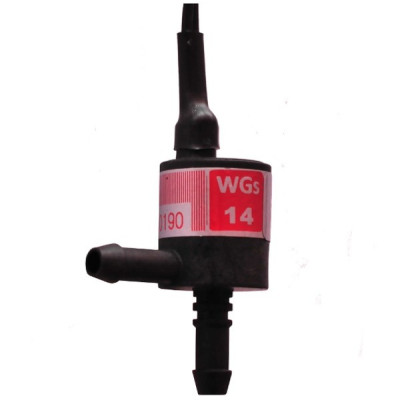

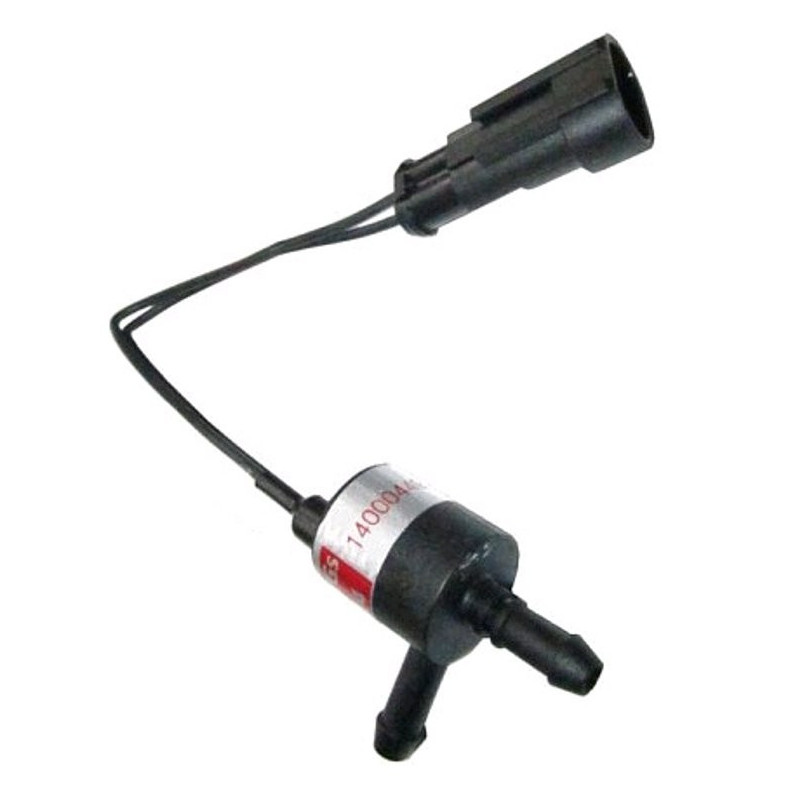

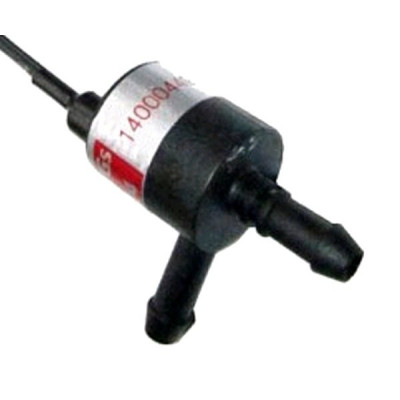

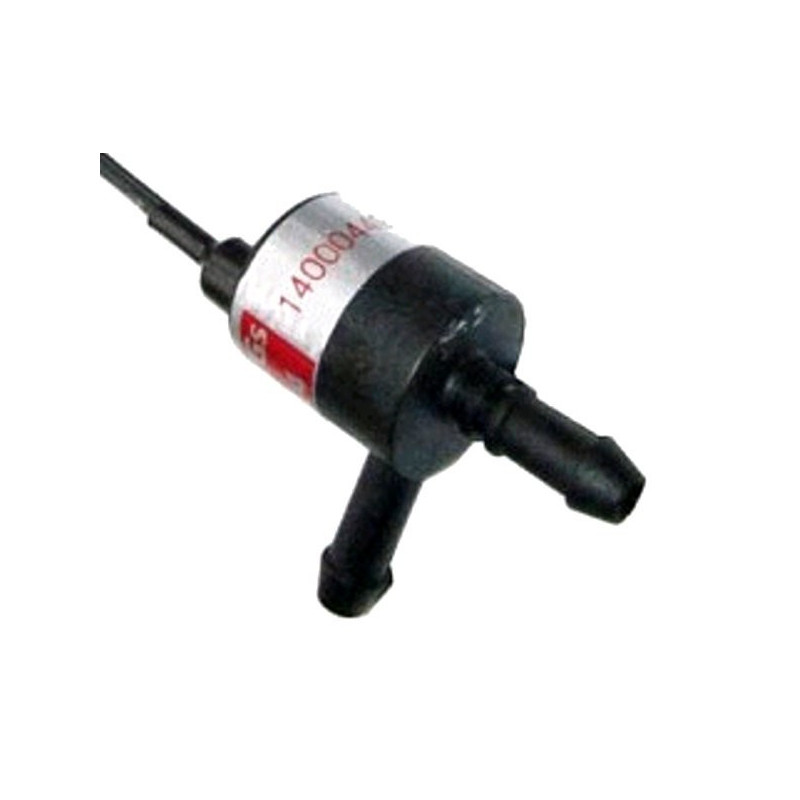

BLADE+ WGs14

Product Reference: 53-35
Quantity
Add to wishlist

BLADE + WGs11 Injector ( 21-27 KM/cyl.)


Injectors BLADE + is an innovative global technology manufactured and patented in Poland.
BLADE + is the fastest, smallest and
LPG injectors lightest in the world!





* Starting * - lightweight, made ​​of Ultramid in the process reinforced with fiberglass. Innovative design and technology used makes the injector is extremely lightweight and resistant to extreme conditions.


* Smallest * - Thanks to Ultramid workmanship are eliminated from the body of the metal. Among other things, therefore, the injector may be so small. In any car does not run out of space for installation by connecting krućców removal at 90 degrees!


* Fastest * - Innovative technology NFT makes the force required to open or close the injector are negligible.


* Reliable * - a guarantee of 24 months.
Injectors are designed to supply diesel engines to LPG sequential gas injection systems (fourth generation). They provide precise metering of the gas separately to each cylinder of the engine manifold.


Using a WGS injectors do not use venturis (wkrętek) or the injector supply line or the line output of the injector. The minimum diameter of the stings (orifice) fixing the gas line to the intake manifold should be not less than 4 mm.


Allowable working pressure 2.0 ÷ 4.0 bar (absolute)

Recommended operating pressure 2.2 ÷ 2.7 bar (absolute)


DC resistance 2.3 Ω ± 0.1 Ω (at 20 ± 5 ° C)


Dimensions (length x diameter) 42 mm x 20 mm
Acoustic emission 64 dB



Injector Type

 WGs 11 WGs 14 WGs 18 WGs 24

Flowrate (mg/ms)

 1.1 1.4 1.8 2.4

Power HP/cyl.

 <20 21-27 28-35 >35

Opening time

 ~0.92ms ~1.12ms ~1.26ms ~1.32ms

53-35
