- Coil resistance - 1.9 Ω . SM - aluminum body
- Coil resistance - 1.9 Ω
- Operating temperature - 20 ° C to +120 ° C
- Opening time - 2.0 ms
- Closing time - 1.2 ms
- Injection time - 2.9 ms
- Maximum supply pressure - 4.5 bar
- Life - over 500 million cycles
Selection of Hana injectors depending on engine power:
Type / Color | A + | A | B | C |
Yield HP / on one cylinder at a pressure of 0.8 bar (At maximum load) |
40HP | 33HP | 26HP | 20HP |
Yield HP / on one cylinder at a pressure of 1.0 bar (At maximum load) |
50HP | 40HP | 32HP | 25HP |
Yield HP / on one cylinder at a pressure of 1.2 bar (At maximum load) |
60HP | 50HP | 39HP | 30HP |
The 4-cylinder engine with a capacity of: | 160 ~ 240 HP | 132 ~ 200 HP | 104 ~ 156 HP | 80 ~ 120 HP |
The 6-cylinder engine with a capacity of: | 240 ~ 360 HP | 198 ~ 300 HP | 156 ~ 234 HP | 120 ~ 180 HP |
The 8-cylinder engine with a capacity of: | 320 ~ 480 HP | 264 ~ 400 HP | 208 ~ 312 HP | 160 ~ 240 HP |

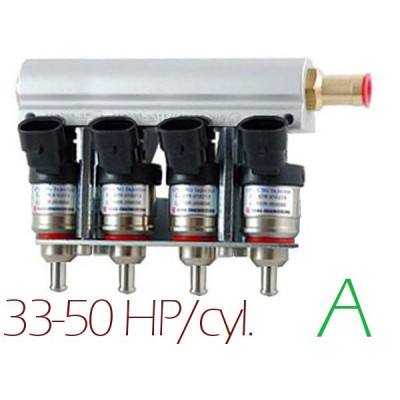

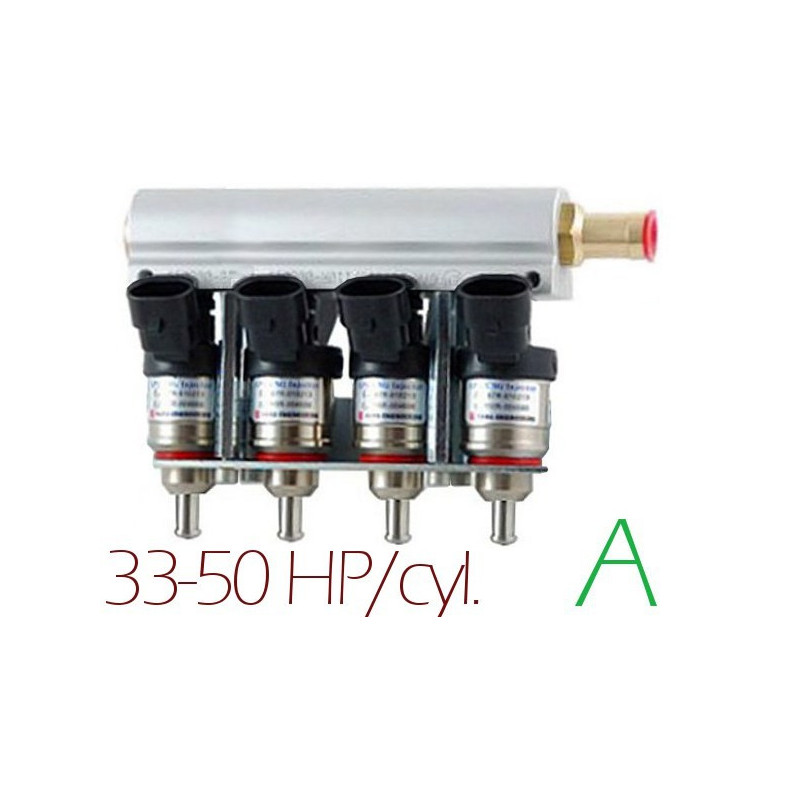

33-50 HP / cyl. [ with the possibility of use of the nozzle. ] - Coil resistance - 1.9 Ω
