Availability: 9818 In Stock
Calibration nozzle for AC W01 5mm
AC W01-4 injectors rail
zł199.00
Tax included
11-29kW / cylinder
Product Reference: 54-59

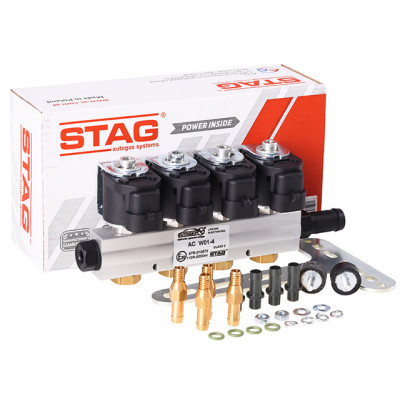

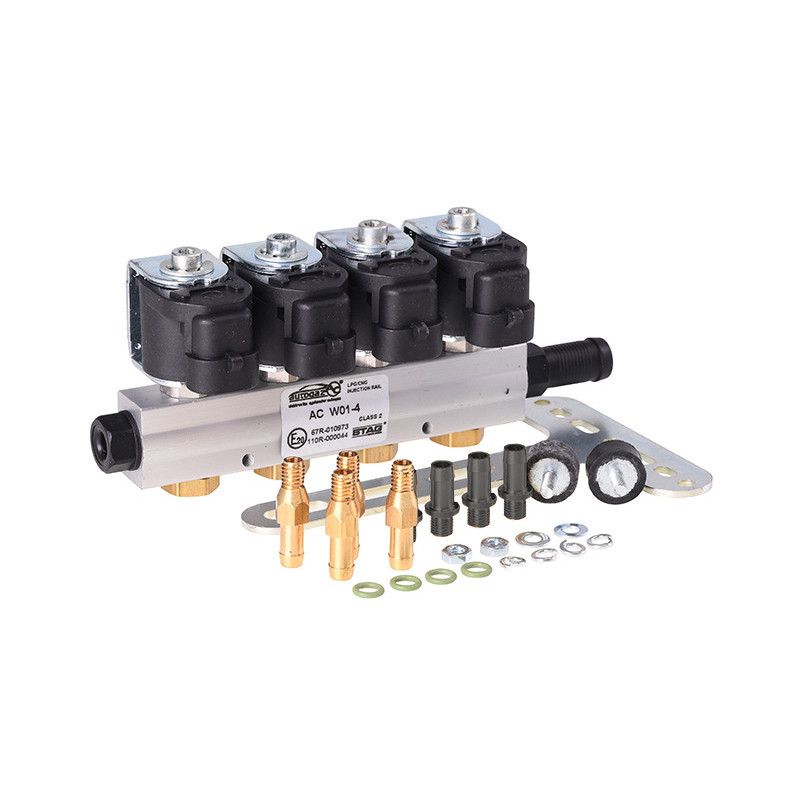

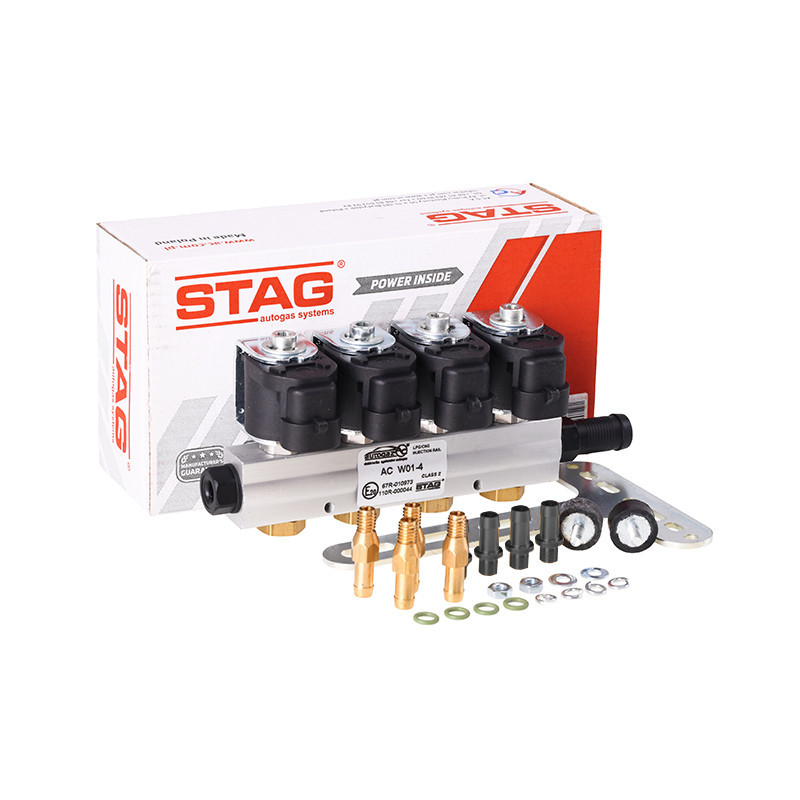

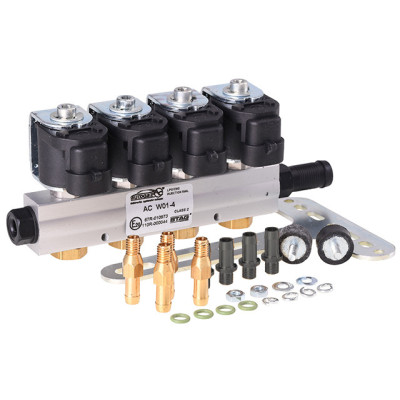

Injector rail AC W01-4
Approval:
(E20) 67R-010973
110R-000044
Working pressure - 0,95-1,2 bar
Maximum operating pressure - 4.5 bar
Temperature - 20 ° C to 120 ° C
Injector opening time (at a pressure of 1 bar) - <2.1 ms
Closing time injectors (at a pressure of 1 bar) - <1.5 ms
Capacity range - 11-29kW / cylinder (adjustable nozzle)
Weight - 0.48 kg
Resistance - 2ohms
Max. flow (at a pressure of 1 bar) - 90l/min
Width - 150 mm
Height - 54 mm
The height of the nozzle - 84 mm
Output nozzle diameter - 4.6 mm
Inlet nozzle diameter - 10.5 mm
2 years warranty
