ULTRA 360 used for sequential gas injection systems.

Product Reference: 59-79
Quantity
Add to wishlist

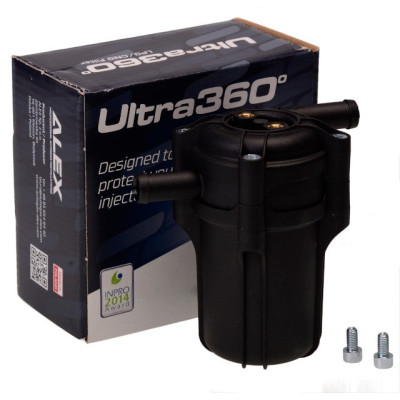

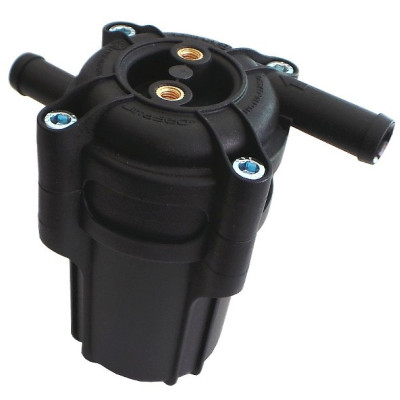

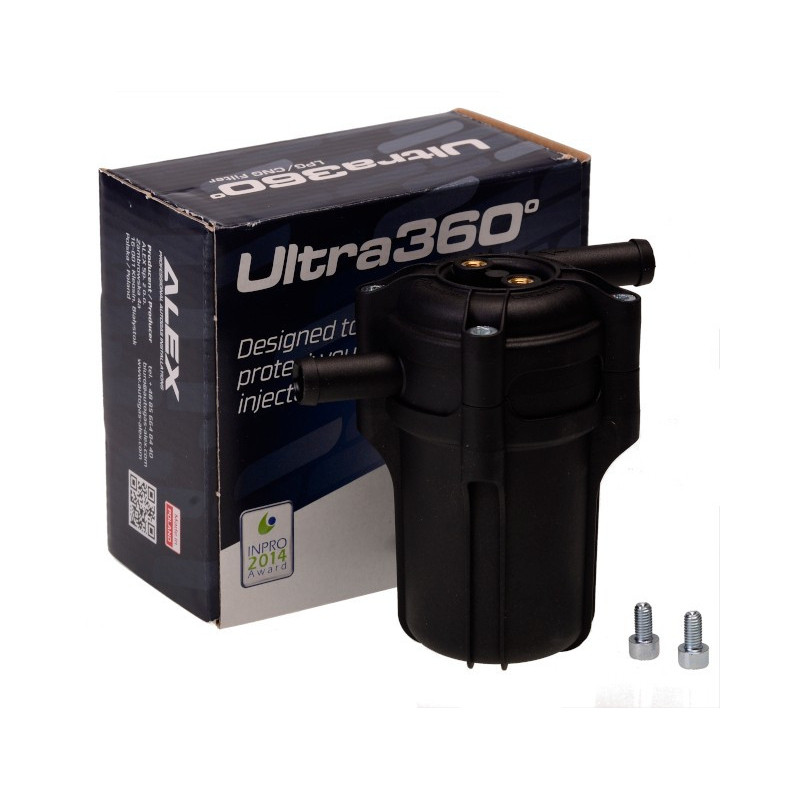

FILTER ULTRA 360  12/12

Approval:
(E8)67R-01775



Ultra 360° is a brand new improved filter with oil separation; effective filtration combined with ergonomy.

The original construction of the filter ensures very effective filtration. Gas entering the filter is set in rotary motion and directed towards the bottom. Thanks to the rotary motion, centrifugal force and inertial force, particular and liquid matters are centrifuged and kept on the bottom. Additionally, the filter cartridge cleans the stream of gas heading upwards from the remaining tiny impurities.

Ultra 360° was designed especially for the convenience of the installers. The inlet and outlet are placed on separate elements of filter cover, which results in easy angle regulation between them. Because of such solution the installer can easily and freely place the filter in the underbonnet area.

The filter has homologations E8 67R-017075 and E8 110R-007076
source:autogaz-alex.pl



TECHNICAL SPECIFICATION

- Cover material: polyamide and glass composite

- Filtrating material: polyester

- Inlet and outlet diameter: 12mm

- Classification: CLASS#2

- Classifying pressure: 4,5 bar

- Working temperature: -20÷120°C



DIMENSIONS

60 x 60 (110 when the inlet and outlet are set on 180°) x 106
