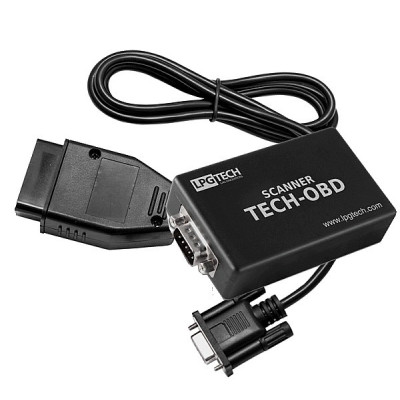

Scanner TECH OBD + service cable

zł185.00

Tax included

Scanner TECH– OBD diagnosis and communication module

Product Reference: 029-01

Description
Product Details

Scanner TECH-OBD

Scanner TECH-OBD enables communication of the TECH Gas Injection System with the petrol controller, that uses an OBD II diagnostic interface. The exceptional feature of the Scanner TECH-OBD is the ability to use it as an independent OBD reader, so apart from reading corrections and errors there is possibility to check car parameters provided by built-in OBD controller.

Scanner TECH-OBD combined with the TECH-124, TECH-224, TECH-320 series controller, provides automatic errors deletion (up to 8 fault codes) which means automatic erase of which were previously defined in the table. In case of different faults, automatic deletion would not be active in order to "check-engine" light notify driver about problem in engine system.

Scanner TECH-OBD combined with the proper TECH controller and the vehicle's diagnosis system, collects the maps of value adjustments of injection time on petrol and autogas. After switching on the adaptation, the OBD system automatically modifies the mixture composition, so that deviations between the maps decreased to zero – that is – to the perfect settings for the car

To correctly connect the Scanner TECH-OBD with the TECH Controllers, see the SCANNER TECH-OBD – connection with TECH controllers.

To correctly connect the Scanner TECH-OBD as an independent OBD reader, see the Scanner TECH-OBD – connection as independent OBD reader.

Full compatibility with the TECH Drivers
Ability of working as an independent OBD reader
Ongoing monitoring of the selected engine parameters
Full diagnostics and the errors reset
Connection through the OBD socket, or directly at the connector cables
Supported protocols:
- ISO 15765-4 CAN (11 bit ID, 500 Kbaud); ISO 15765-4 CAN (29 bit ID, 500 Kbaud);

- ISO 15765-4 CAN (11 bit ID, 250 Kbaud); ISO 15765-4 CAN (29 bit ID, 250 Kbaud);

- ISO 14230-4 KWP (fast init, 10.4 Kbaud); ISO 14230-4 KWP (5 baud init, 10.4 Kbaud);

- ISO 9141-2 (5 baud init, 10.4 Kbaud);

- SAE J1850 VPW (10.4 Kbaud); SAE J1850 PWM (41.6 Kbaud);
Connecting cables included
Casing made of composite
