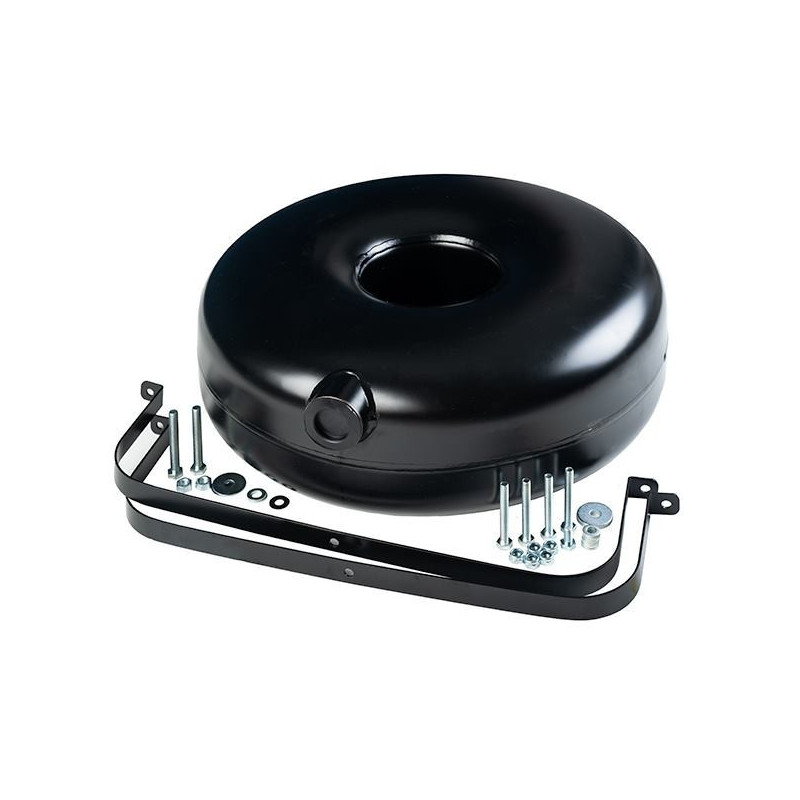

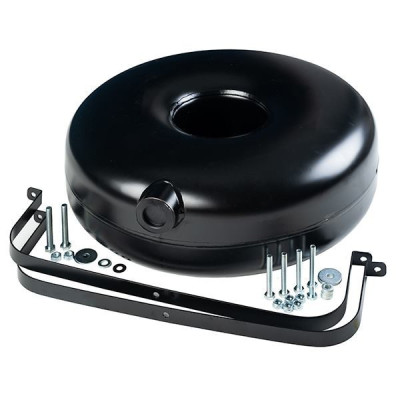

External toroidal tank
Specifications:
Diameter - 600 mm
Height - 200 mm
Capacity: 44 liters
The test pressure of 3.00 MPa,
Burst pressure min. 6.75 MPa
Design according to UN ECE 67R-01
For this tank multivalve mount toroidal 200/204mm 0-degrees
Includes:
Tank ZTZ 600/200/44 liter - 1 pc
Approval of a tank - 1 pc
Data sheet
MVAT0E03X1
Seal for multivalve Tomasetto / BRC
BORMECH 34L 565/180 ZTZ
GZWM 77L 650/270 ZTP
E20 67R-011032
E20 67R-031177
E20-67R-010 439
E20 67R-010615
T63004812. Aapproval: E20-67R-011072
External toroidal tank
E20-67R-010803
67R-016027.07
Approval: E20-67R-011041
POLMOCON 66L 650/250
34L BORMECH
