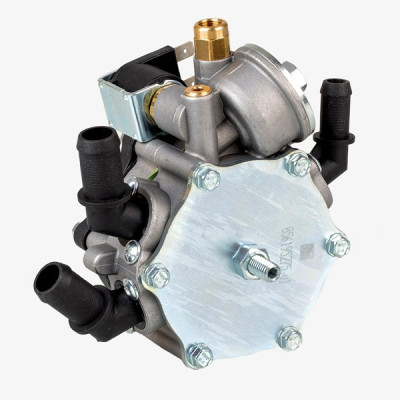

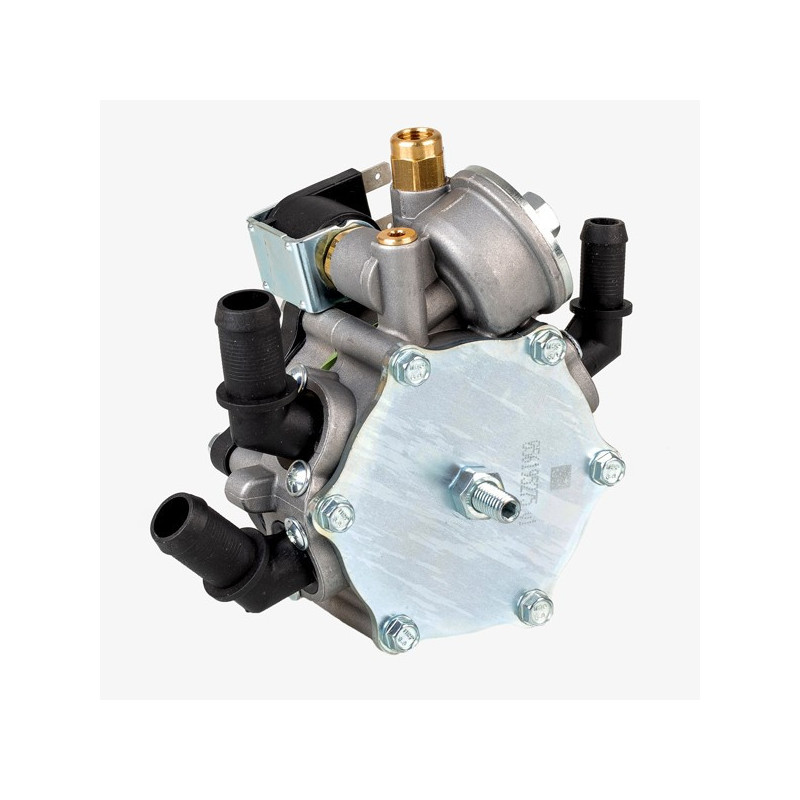

WGM-70AB. Vaporizer AC R02 (100kW)
Approval
E8 67R 016865
- Max. performance 136HP ( 100kW )
- Inlet pipe Ø 6 M10x1
- Gas output Ø 12 mm
- Cooling system input / output Ø 16 mm
- Pressure (adjustable) 0.9 ÷ 1.5 bar
- Operating temperature -20 to 120 ° C
- Vacuum nozzle 4 mm
- Dimensions: 116 x 138 x 89 mm
- Weight 1,6 kg

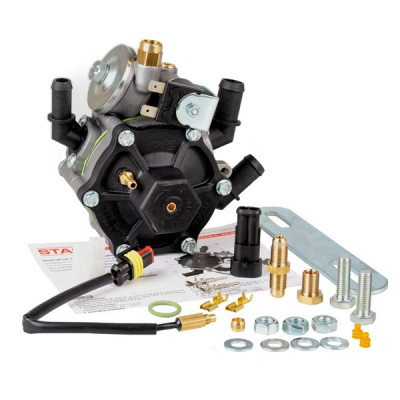

The kit includes:
Reducer AC R02-120 - 1 pc
Temp. sensor - 1 pc
Mounting accesories - 1pc
